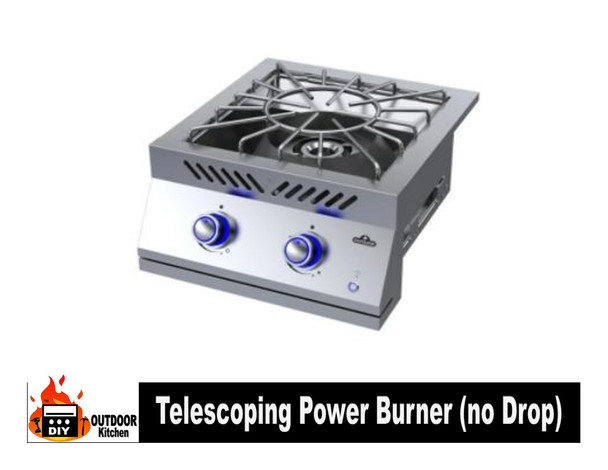

DIY Outdoor Kitchen Power Burner Cutout Kit (No Drop)

REG PRICE $125.98 SALE PRICE $62.99

FREE SHIPPING on Orders Over $400* (Within the continental USA)

Use for all power burners with up to a 15.75"-22.5" wide cutout

This item is the extra tubes and connectors needed to make a power burner cutout into the top of your DIY Outdoor Kitchen module frame including our Amazing No Cut Connectors and No-Cut Telescoping Tubes for below and behind the burner.

Note: This video shows the old way where we use to cut the tubes. Now we have new No-Cut Telescoping Tubes to make it faster and easier to install each cutout kits.

Telescoping Includes:

2ea  Steel Tubes  12" x 21mm

2ea Steel Tubes  14" x 25mm

2ea  CTT Tubes 29 3/4" for left and right side of grill

2ea  3 Way Corner Couplers

4ea 1 Way couplers (4 males and 2 females)

Note: You will use the two vertical tubes from the module for the right and left side burner supports. These will connect to the included 3 way corner couplers leaving you two extra one way couplers that you will use for the CTT's saving you money.

This is not a drop down kit where you want the power burner to be 12" below the counter top.

It will work for all built-in power burners with a 15 3/4-22 1/2"  wide cutout width that are supported on the counter top such as Bull, Cal Flame, Fire Magic, Summerset, Napolean, etc...

Some high end slide in power burners will require you to make a platform frame in addition to this cutout opening.

For platform side burners you will buy extra tubes and one way connectors sold as a side burner platform kit in addition to this universal grill kit.

What's Not Included:

power burners with a cutout less than 15 3/4"will require you to trim the  tubes as needed.

This kit does not include the actual bar center, cement board, a 4ft module, screws, etc...

ASSEMBLY REQUIRED - No Screws Included
